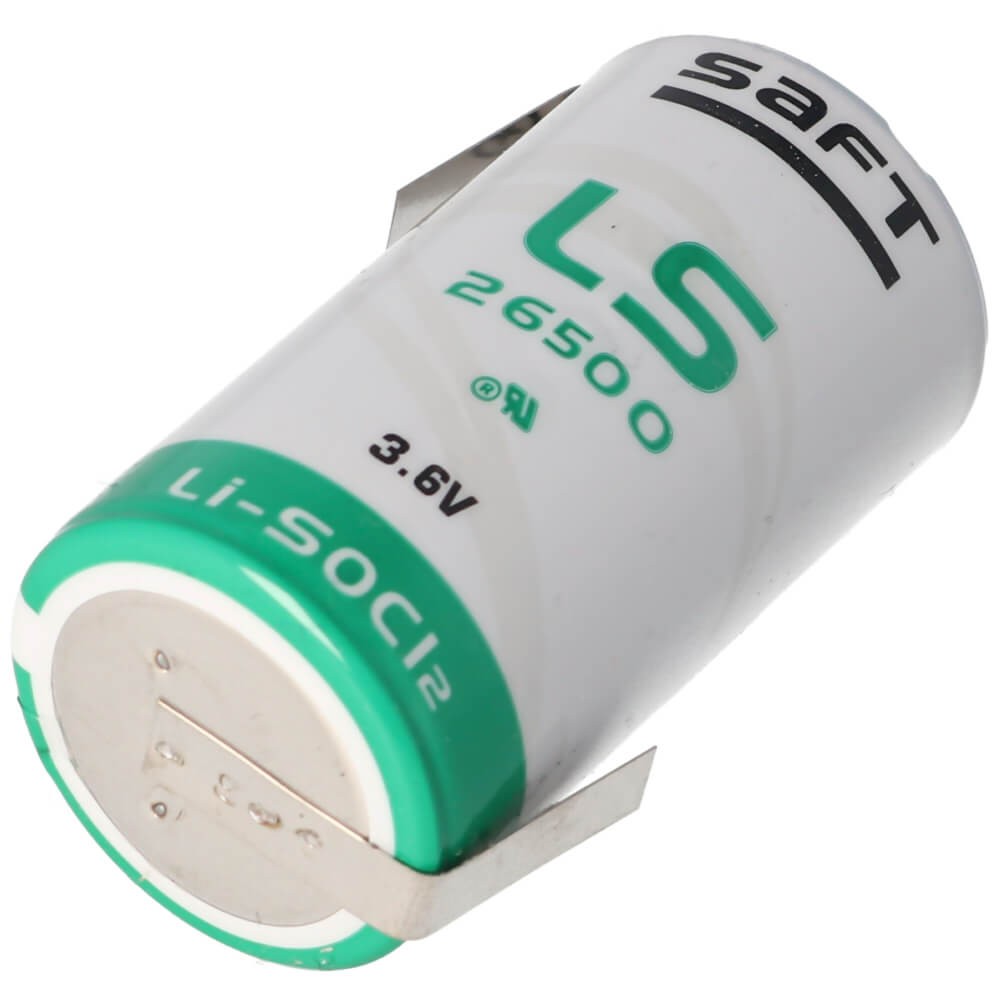

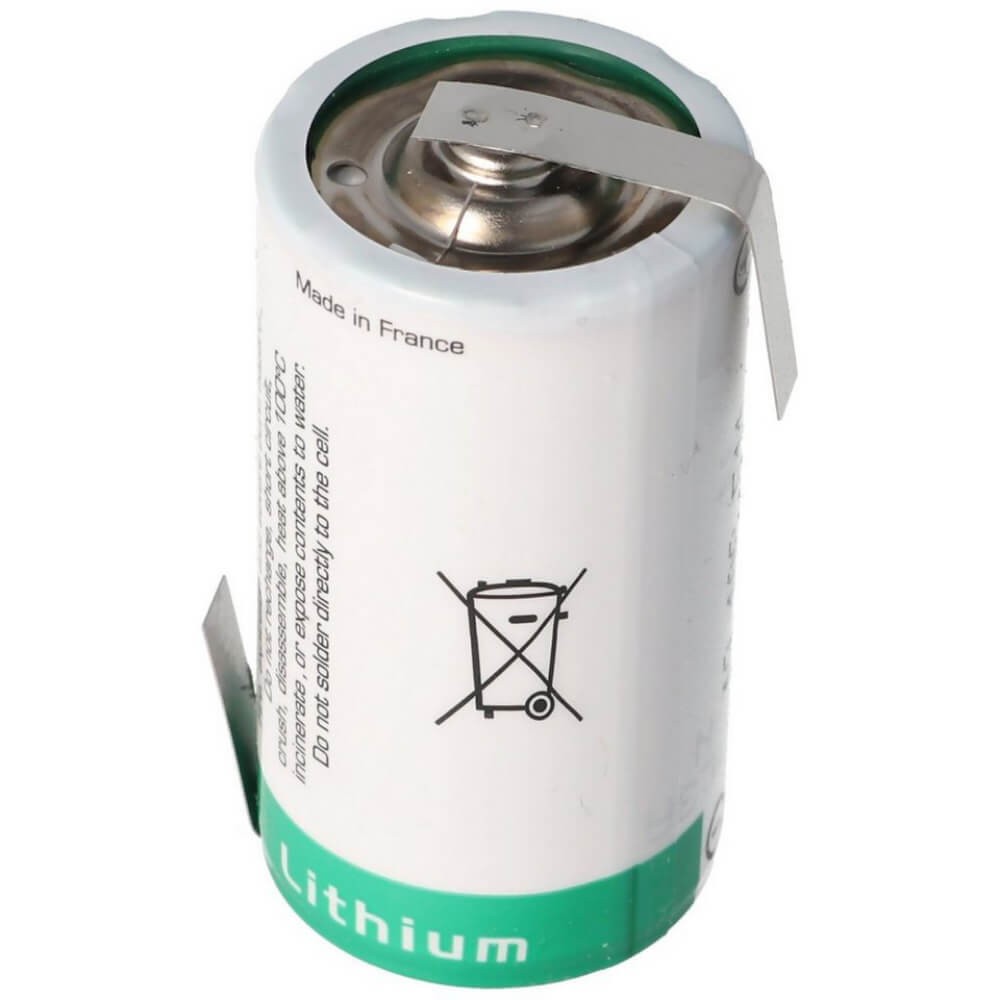

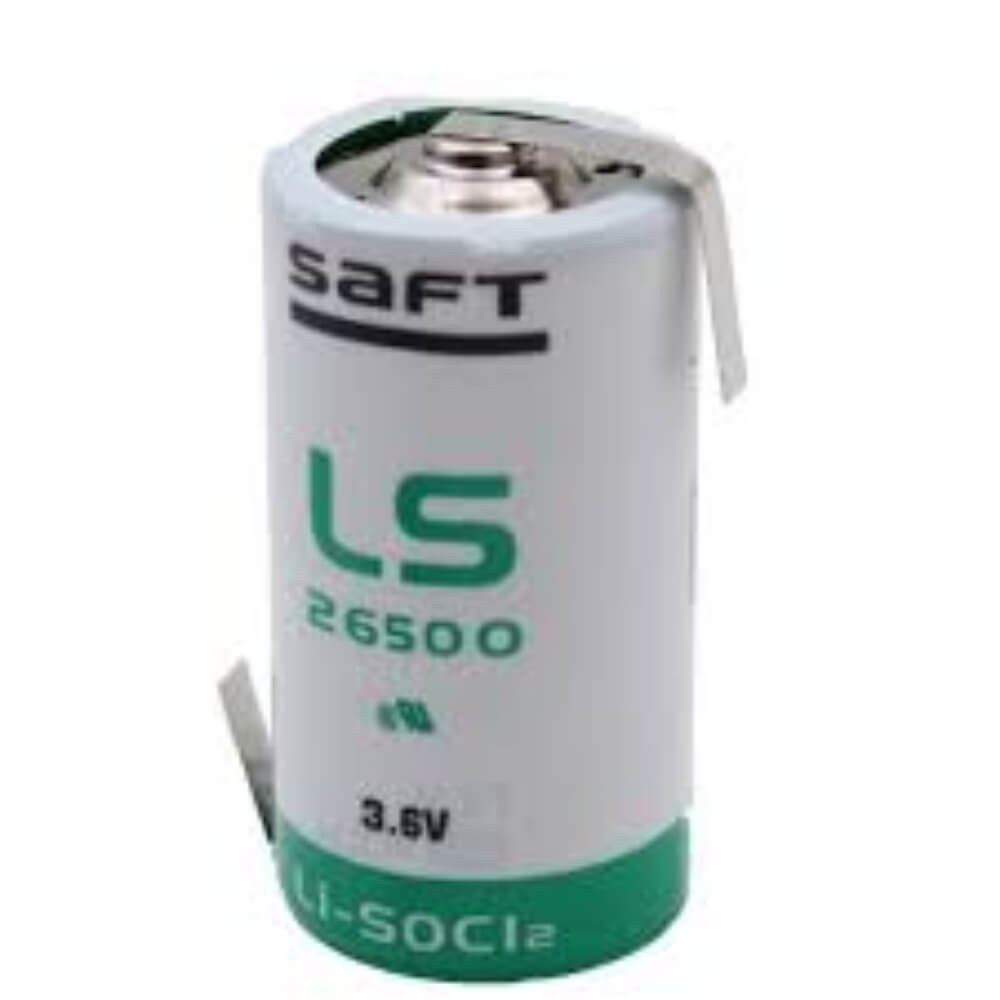

Saft ls26500, C size battery 3.6V 7700mah with tabs in opposite directions


Price:
Sale price$32.99 CAD

Shipping calculated at checkout

Other style terminations

---------------------------------------------------------------------------------------
This product is in stock ready for shipment from our Burlington, Ontario warehouse.
---------------------------------------------------------------------------------------

There is a $25.00 Minimum order amount please add more items to your cart if under this amount.

Product Attachments

Saft LS26500 Data catalogue
Saft LS26500 Data catalogue Combined document containing the specifications, MSDS, Atex certificate, and the UN test certificate(3.97 MB)

Estimate shipping

Specifications

Saft LS26500 C-Size Lithium Battery Specifications

Saft LS26500 C-Size Lithium Battery Specifications

Parameter Specification
Nominal Voltage 3.6 V
Nominal Capacity 7.7 Ah
Nominal Energy 27.72 Wh
Maximum Continuous Current 150 mA
Pulse Capability Up to 300 mA
Operating Temperature Range -60°C to +85°C
Storage Temperature (Recommended) Up to +30°C
Diameter 26.0 mm (1.02 in)
Height 50.4 mm (1.98 in)
Weight 48 g (1.7 oz)
Self-Discharge Rate < 1% after 1 year at 20°C
Safety Standards UL Component Recognition, IEC 60086-4, IEC 60079-11
Applications Utility metering, industrial applications, professional electronics, and more

Description

Saft ls26500, C size battery 3.6V 7700mah with tabs in opposite directions

Discover the powerhouse behind precision and reliability – the Saft LS26500CNR. Designed for cutting-edge performance in industrial, professional, and utility-grade electronics, this C-size 3.6V lithium-thionyl chloride (Li-SOCl₂) battery offers unparalleled energy density, durability, and safety.

Key Features:

  • High Energy & Voltage Stability: Boasts a nominal capacity of 7.7Ah with a voltage response of 3.6V, ensuring consistent performance even in demanding conditions.
  • Wide Operating Range: Functions effortlessly in extreme environments, from -60°C to +85°C.
  • Impressive Pulse and Continuous Current: Capable of delivering up to 300mA pulse and a recommended continuous current of 150mA (higher upon consultation with Saft).
  • Low Self-Discharge: Retains over 99% of capacity after a year at 20°C, ensuring long shelf life and reliability.
  • Compact, Durable Design: Constructed with a stainless steel container and hermetic glass-to-metal seals, offering corrosion resistance and a low magnetic signature.
  • Intrinsically Safe: Compliant with IEC 60086-4 and IEC 60079-11 safety standards, featuring a non-flammable electrolyte for secure operation.
  • Easy Integration: Customizable termination options, including tabs in opposite directions for streamlined battery pack assembly.

Applications:

Ideal for utility metering, automatic meter readers, industrial equipment, professional electronics, buoys, and measurement tools. Its high energy output, stable performance, and robust design make it the go-to solution for critical operations.

Specifications:

  • Diameter: 26.0 mm
  • Height: 49.1 – 50.4 mm (depending on finish)
  • Weight: 48g
  • Lithium Content: Approx. 2.0g
  • Certifications: UL Component Recognition, UN Class 9 for transport, and ATEX/IECEx standards.

Why Choose the Saft LS26500CNR?

Backed by Saft's century-long commitment to innovation and quality, this battery embodies precision engineering for modern energy needs. Its unique reverse-tab design simplifies pack assembly, and its rugged construction ensures reliability in harsh conditions.

Power your projects with the confidence of Saft’s advanced lithium technology. For detailed specifications or custom configurations, contact us today!
